When choosing between a 1141 and 1156 bulb, you’ll notice both share a BA15S base and S8 shape, fitting most vehicle sockets. The 1141 draws 18.4 watts with 264 lumens, while the 1156 uses 26.9 watts for brighter 402 lumens at 12.8V. They’re often interchangeable, but wattage differences can cause electrical issues. Pick based on your brightness needs for turn signals or brake lights. Stick around to uncover deeper insights into compatibility challenges.
Key Takeaways
- Both 1141 and 1156 bulbs have a BA15S base, making them often interchangeable.
- The 1141 bulb uses 18.4W, producing 264 lumens, while 1156 uses 26.9W, outputting 402 lumens.
- The 1156 bulb is brighter, suitable for critical applications like brake lights.
- Interchangeability issues may arise from wattage differences or socket wiring variations.
- LED replacements for both offer higher efficiency and longer lifespans up to 50,000 hours.

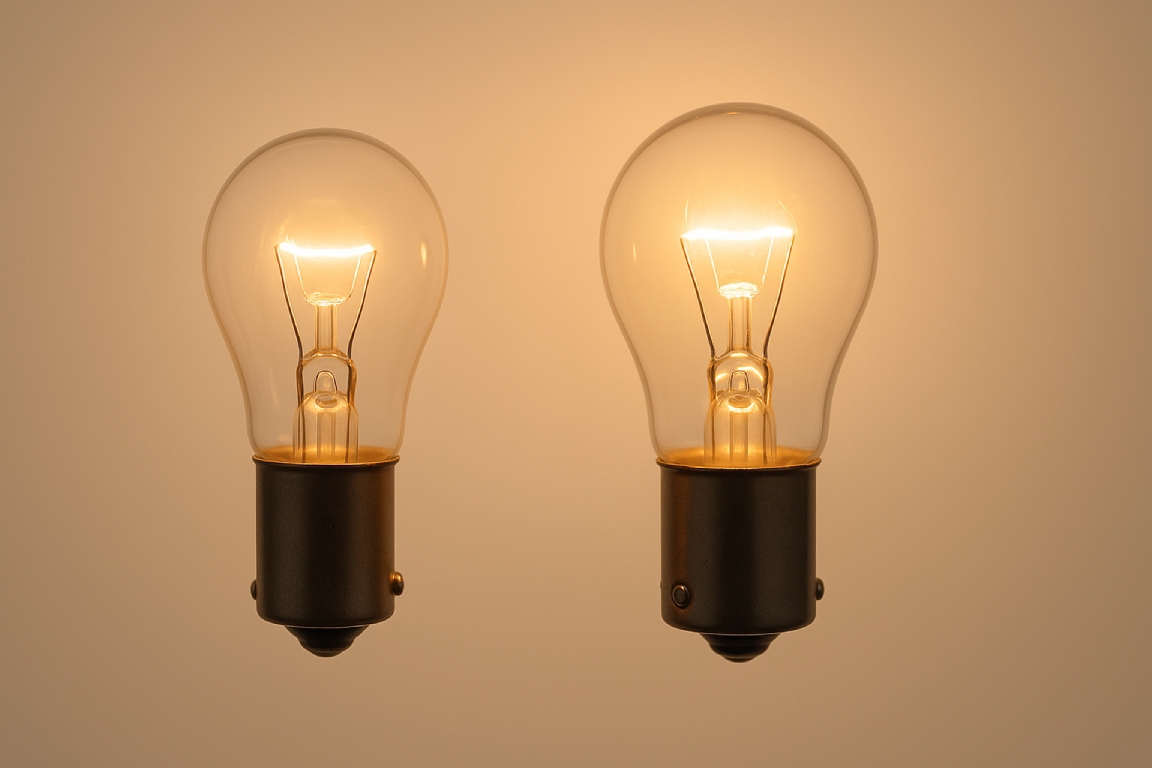

1141 and 1156 Bulbs Overview
While exploring automotive and specialty lighting, you’ll find that both 1141 and 1156 bulbs are incandescent options with an S8 shape and a BA15S single-contact bayonet base, making them often interchangeable or listed as replacements for bulbs like 1003 or 1073.
You’ll notice manufacturers frequently package them as cross-compatible, simplifying selection for various applications.
Delve deeper, and you’ll see distinct differences. The 1141 typically consumes 18.4 watts, producing around 264 lumens, while the 1156 draws about 26.9 watts, outputting roughly 402 lumens for brighter illumination. Additionally, the 1141 bulb from CEC Industries offers a reliable average rated life of 1000 hours, ensuring consistent performance for automotive needs.
Dig into the details, and you’ll spot key contrasts. The 1141 uses 18.4 watts for 264 lumens, while the 1156 offers 402 lumens at 26.9 watts.
Both operate at 12-13 volts, ensuring compatibility with many systems.
LED alternatives exist for both, offering lower power use (1-8 watts) and higher brightness (up to 850 lumens), plus lifespans reaching 50,000 hours.
Base and Socket Design
As you examine the base and socket design of 1141 and 1156 bulbs, you’ll notice both share the BA15S base type, a single-contact bayonet configuration with a precise 15mm diameter.
This base, also called Single Contact Bayonet, features two parallel locking pins positioned 180 degrees apart, ensuring a secure fit in matching sockets. You’ll find that installing these bulbs is straightforward—insert and twist to lock the pins into the socket’s grooves.
The BA15S socket accommodates this single contact point and often includes durable, pre-wired connectors for plug-and-play ease. Additionally, the Halco 1156 bulb, with its BA15s base type, ensures compatibility with standard single-contact sockets.
Remember, while the base width remains standard at 15mm, bulb shapes like S8 might vary, potentially affecting fitment.
Compatibility-wise, BA15S won’t work with offset-pin bases like BAY15D or BAU15S.
Electrical Specifications Comparison
When comparing the electrical specifications of 1141 and 1156 bulbs, you’ll notice distinct differences, primarily because the 1141 is often interchangeable with the 1156 in many applications, sharing similar specs for incandescent versions.
For the 1156 incandescent, you’re looking at 12.8V, 26.9W, and 2.1A with a 1200-hour lifespan. Additionally, the candlepower of the 1156 bulb increases with voltage, adjusting based on the applied voltage for optimal performance.
LED variants, however, vary widely in power and efficiency.
Consider these critical electrical aspects for 1156 LEDs:
- Voltage Range: Operates between 9-30V DC, fitting diverse systems.
- Wattage: Ranges from 2W to 30W, far below incandescent’s 27W.
- Lifespan: Extends up to 50,000 hours, outlasting traditional bulbs.
- Special Features: Includes heat sinks or built-in resistors for reliability.
You’ll find LEDs save energy and often need specific compatibility considerations.
Light Output and Brightness Levels
Let’s shift focus from electrical specs to the light output and brightness levels of 1141 and 1156 bulbs, a key factor in choosing the right option for your needs.
You’ll notice standard incandescent 1156 bulbs deliver about 402-404 lumens with a candela rating near 32 for focused intensity. In contrast, LED 1156 replacements vary widely, from 230 to over 2800 lumens, often appearing brighter due to clearer, instant-on light and efficient power use. Additionally, the specific 1156 bulb, part number DI49VR, provides a consistent 404 lumens output of soft white light at 2,700 K, making it a reliable choice for various applications.
Check lumen claims, as actual output might differ. Consider color temperature—cooler 6000K feels brighter than warmer 3000K—and beam patterns with 360-degree LEDs or projector lenses for even distribution.
Match brightness to need: 250-850 lumens for moderate upgrades, or 1000+ lumens for maximum visibility.
Typical Applications in Vehicles
Shifting to practical uses, you’ll find that both 1141 and 1156 bulbs serve critical roles in various vehicle lighting applications due to their single-filament, single-intensity design with a BA15S base.
These bulbs fit seamlessly into systems requiring a single brightness level, making them versatile for cars, trucks, trailers, and RVs. You’ll see them in key functions that enhance safety and visibility. Their design ensures compatibility with single-function sockets, avoiding issues seen with dual-filament bulbs like 1157.
Here’s where you’ll typically install them:
- Turn Signals: Use amber 1156 bulbs for front and rear indicators, often interchangeable with 7506 or 7527.
- Reverse Lights: Opt for white 1156 bulbs (6000K) to boost clarity when backing up.
- Brake Lights: Choose red 1156R bulbs for dedicated stop functions.
- Tail Lights: Employ red 1156R as rear marker lights.
Power Consumption and Heat Generation
As you plunge into the nuances of 1141 and 1156 bulbs, understanding their power consumption and heat generation is essential for making informed choices.
You’ll notice standard incandescent 1156 bulbs draw around 26.88W to 27W at 12.8V, pulling 2.1A, which generates significant heat due to inefficiency. This can risk melting plastic housings.
In contrast, LED 1156 variants consume far less, ranging from 1W to 10.5W, with amperage as low as 0.067A, saving up to 90% power and easing electrical strain.
LEDs also produce minimal heat, often using heat sinks for dissipation in higher-wattage models. It’s worth noting that the lower wattage of LEDs significantly reduces energy use, contributing to overall efficiency and sustainability.
Factors like LED type, circuitry, and lumen output influence power and heat, ensuring better durability with reduced cooling needs in tight spaces.
Physical Similarities and Differences
Diving into the physical aspects of 1141 and 1156 bulbs, you’ll find they share a nearly identical design, primarily due to their interchangeable use in BA15S sockets with a 15mm diameter bayonet base.
Both feature a single contact point at the base center, a metal shell for grounding, and two locking pins at 180° separation with no vertical offset. Their S-8 glass envelope measures about 2 inches long and 1 inch wide. Additionally, the 1156 bulb operates at a voltage of 12.8 Volts, aligning with standard automotive and indoor applications.
Notice these critical design elements:
- Base: BA15S with single-contact configuration.
- Pins: Parallel, opposite placement for secure socket fit.
- Filament: Single C-6 type for consistent, single-brightness output.
- Shape: Standardized S-8 for uniform appearance.
You’ll see these specs guarantee both bulbs align closely in form and structure.
Interchangeability Challenges
While the 1141 and 1156 bulbs share striking physical similarities, you’ll quickly notice that swapping them isn’t always straightforward due to several interchangeability challenges.
First, electrical compatibility issues arise from voltage or wattage mismatches, where a higher-wattage 1156 can trigger false error warnings on your vehicle’s computer.
LED replacements often draw less current, causing “bulb out” errors or hyperflashing in turn signals due to low resistance.
CAN Bus systems in modern cars mightn’t recognize standard LEDs, and even “error-free” bulbs can initially hyperflash or fail in some vehicles.
Additionally, base material differences, like brass versus nickel-plated, risk poor contact or corrosion without dielectric grease. It’s also critical to verify the correct bulb size for specific applications, as confusion between sizes like 1156 and 7506 can lead to improper fit or function bulb size verification.
Finally, socket wiring variations, such as Standard versus CK, can prevent proper function or cause damage.
Choosing the Right Bulb for Your Needs
Having explored the hurdles of swapping 1141 and 1156 bulbs, let’s focus on selecting the best bulb tailored to your specific requirements.
After tackling the challenges of swapping 1141 and 1156 bulbs, let’s dive into choosing the perfect bulb for your unique needs.
You’ve gotta prioritize factors like brightness, with 1156 LEDs offering 500-2800 lumens versus incandescent’s 400-404 lumens, especially for safety in brake or reverse lights. Confirm the BA15S base fits your vehicle’s socket and match LED color to lens color for maximum output. For instance, modern options like the 7443 LED bulb provide exceptional brightness with 2800 lumens output for optimal visibility.
Consider these critical aspects for a smarter choice:
- Brightness Needs: Pick high-lumen LEDs for visibility in reverse lights.
- Energy Efficiency: Opt for LEDs (2.4-8W) over incandescent (26.9W) to ease electrical strain.
- Durability: Choose LEDs for 30,000-50,000 hours lifespan and vibration resistance.
- Compatibility: Verify voltage (12V DC) and socket fitment before purchase.
Frequently Asked Questions
Are 1141 and 1156 Bulbs Dimmable?
Hey, you’re wondering if 1141 and 1156 bulbs are dimmable, right? Check this out: traditional incandescent versions of both bulbs dim easily by lowering voltage, reducing filament brightness.
For LED replacements, it’s trickier—dimmability depends on the model and manufacturer. Always inspect the specs to confirm if they’re labeled “dimmable.”
You’ll need compatible dimmers, often PWM for LEDs, to avoid flickering or poor performance in your setup.
Can LED Equivalents Replace These Bulbs?
Ever wondered if LED equivalents can truly step in for traditional bulbs?
Well, you can replace them with LED options that fit the BA15S base perfectly. Confirm the LED matches your 12V system, typically ranging from 10-30V. Check the physical size for S8 housing compatibility.
You’ll enjoy lower power draw (2W-8W), longer life (up to 30,000 hours), and brighter output. Just watch for hyper-flashing or CAN Bus errors!
What Is the Lifespan of These Bulbs?
Hey, you’re curious about the lifespan of these bulbs, right? Let’s break it down.
Standard incandescent bulbs typically last around 1,200 hours, while long-life versions reach up to 2,400 hours. Halogen variants, however, only manage about 250 hours.
On the other hand, LED options boast an impressive 20,000 to 50,000 hours, thanks to superior durability and heat management. You’ll find LEDs drastically outlast traditional bulbs with proper care.
Do These Bulbs Come in Different Colors?
Imagine a world of dull, single-hue lights, then picture a vibrant spectrum at your fingertips. You’re in luck—these bulbs do come in different colors!
You’ll find standard incandescent options in white, amber, and red, while LED variants expand your choices with cool or warm white (like 6000K), blue, green, and even specialty shades like pink.
Match the precise color to your vehicle’s lens and function for ideal, compliant performance.
Are These Bulbs Resistant to Vibration?
Hey, you’re probably wondering if these bulbs can handle vibration. Well, it depends on the type.
Standard incandescent bulbs often struggle with shock, as their filaments are fragile and prone to breaking under stress. Heavy-duty incandescents offer better resistance with reinforced filaments.
Meanwhile, LED replacements excel, thanks to their solid-state design with no filaments to snap. They’re your best bet for high-vibration settings, ensuring durability and reliability.
Peak Performance Starts With Proper Bulb Selection
Picking between the 1141 and 1156 bulb is like choosing the perfect gear for a precision machine. You’ve gotta match the base design, voltage needs, and brightness to your vehicle’s specs. Don’t mix ‘em up—interchangeability ain’t guaranteed due to socket and wattage differences. Check your car’s manual, assess power draw, and heat output. Make the smart call to guarantee peak performance and safety on every drive you take.
